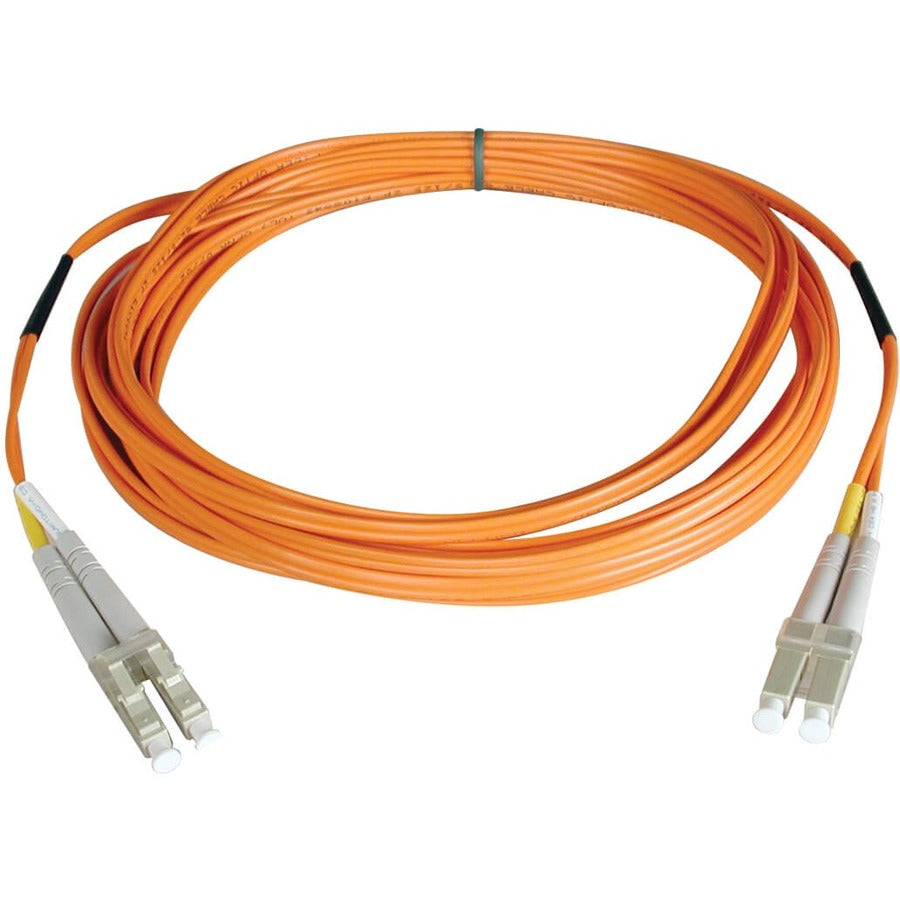

Tripp Lite 100M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 328' 328ft 100 Meter - LC Male - LC Male - 328.08ft - Orange - N520-100M
$174.25
Skip to product information
Premium PVC multimode patch cables
Attenuation loss meets or exceeds the latest industry standards
Higher bandwidth optimized for gigabit and 10Gbps networks
Tripp Lite 100M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 328' 328ft 100 Meter - LC Male - LC Male - 328.08ft - Orange - N520-100M
$174.25
- Use on fiber and fibre channel installations
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- Number of fibers: 2
- Fiber type: all glass graded index
- Primary coating diameter: 245+/-15 microns
- Primary coating material: acrylate
- Secondary coating diameter: 900+/-50 microns
- Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
- Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
- Numeric apeture: .275 nominal
- Proof test level: 100,000 PSI
- Insertion loss testing performed on every connector (0.2db typical) and provided with cable
- Beveled edge on ends of glass makes insertion of plug a breeze
Premium PVC multimode patch cables
Attenuation loss meets or exceeds the latest industry standards
Higher bandwidth optimized for gigabit and 10Gbps networks
