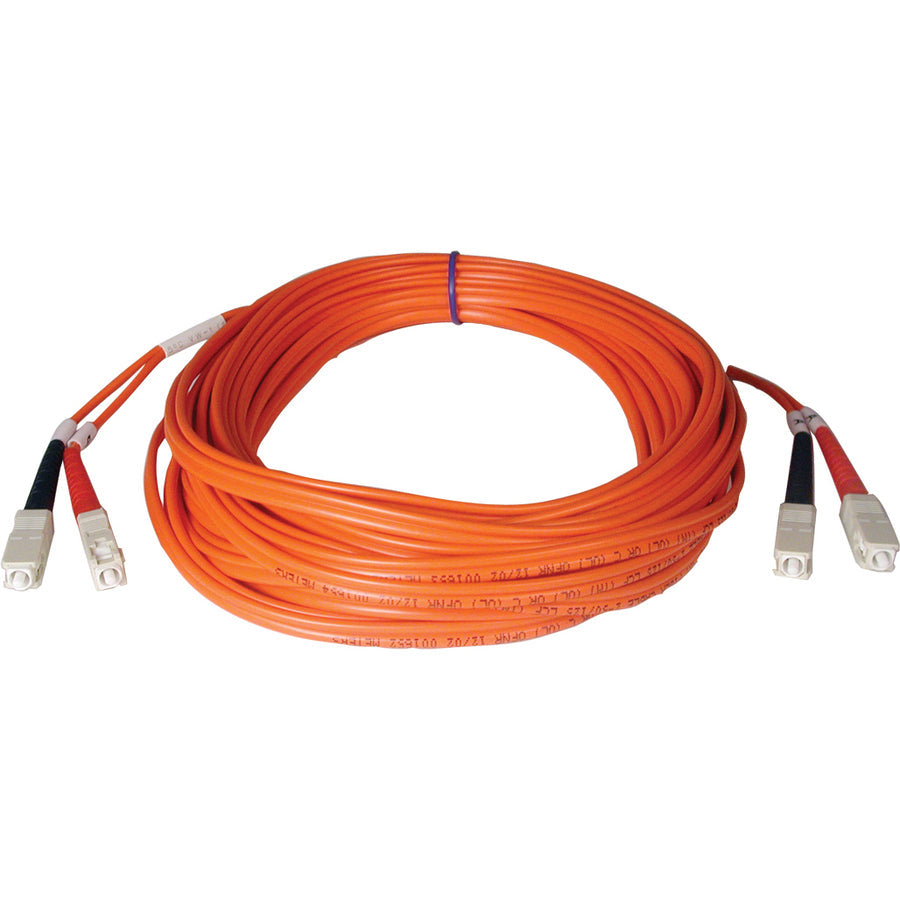

Tripp Lite 15M Duplex Multimode 50/125 Fiber Optic Patch Cable SC/SC 50' 50ft 15 Meter - SC Male - SC Male - 49.21ft - N506-15M
$36.09
Skip to product information
Premium PVC 50/125 multimode patch cables
Attenuation loss meets or exceeds the latest industry standards
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Tripp Lite 15M Duplex Multimode 50/125 Fiber Optic Patch Cable SC/SC 50' 50ft 15 Meter - SC Male - SC Male - 49.21ft - N506-15M
$36.09
- Fiber type: all glass graded index
- Core diameter: two 50+/-3 microns
- CLAD diameter: 125+/-2 microns
- Primary coating diameter: 245+/-15 microns
- Primary coating material: acrylate
- Secondary coating diameter: 900+/-50 microns
- Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
- Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
- Numeric apeture: .275 nominal
- Proof test level: 100,000 PSI
- Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Premium PVC 50/125 multimode patch cables
Attenuation loss meets or exceeds the latest industry standards
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
